Dana Diabecare R

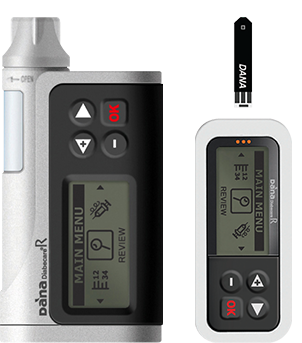

Dana Diabecare R Remote System is a smart insulin pump with discrete remote control.
Features
Convenient
The Dana R incorporates a BG meter in the remote control. This automatically shares BG test results with the Dana insulin pump using secure BT communication. No need to carry extra glucose meter.
Discreet
The Dana R remote control enables full function of the Dana R insulin pump. Discreetly deliver a bolus, change the basal or change user options, all from the remote – keep the pump discreetly hidden beneath clothing.
Small & Light
The Dana R insulin pump is very small and light, only 63grams with a full 300unit reservoir and battery installed. Not only small, light and smart but fully water-proof IPX-8 rated.
Dana Diabecare R Remote System Enables you to...
Technical Specifications
BOLUS FEATURES
- • Bolus increments: 0.05, 0.1, 0.5 or 1.0 units
- • Variable bolus duration: 12/30/60seconds/unit
- • Audible bolus feature
- • Extended bolus (30 minutes - 8 hours)
- • Dual pattern bolus
- • Grams CHO or unit’s insulin
BASAL FEATURES
- • Minimal delivery rate: 0.04 unit/hr
- • Basal delivery: every 4 minutes (above 0.09u/hr)
- • Basal increments: 0.1 unit/hr or 0.01 unit/hr
- • Changes per profile: up to 24
- • Temporary basal: 1hr - 24 hrs, 0% - 200%
- • Profiles: 4
SUPPLEMENTARY FEATURES
- • Carbo/Bolus calculation
- • Missed meal bolus alerts
- • Alarm: audio, vibration or both
- • Button scroll
- • 21 Languages supported
(Arabic, Chinese, Czech, Dutch, English, French, German, Greek, Hebrew, Hindi, Iranian, Italian, Korean, Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish)
SAFETY FEATURES
- • Button-Lock mode to prevent unintended operation
- • Alarm (Low Battery, Low reservoir, Occlusion + Customisable)
- • Dual microprocessor fail-safe function
- • Bolus frequency restriction
- • Active insulin monitoring
MISCELLANEOUS FEATURES
- • Pump capacity: 300 units (3.0 cc)
- • IPX8 rating(pump), IPXn rating(remote)
- • Average battery Life: 3-4 Weeks
- • IPX8 rating – waterproof
- • Size: 91 x 45 x 19mm
- • Weight: only 63g incl. battery and full reservoir
- • 4 Year warranty
CUSTOMIZABLE FEATURES FOR INDIVIDUALS INCLUDING PROFESSIONAL CARE GIVERS
- • Audible reminders for testing blood sugar levels after bolus
- • Bolus frequency restriction
- • Pre-settable default bolus
- • PIN programming for healthcare professional and/or caregivers
| PUMP Type | Syringe (No cartridge) | |
|---|---|---|
| Size | 91×45.5×20 ㎜ | |
| Net weight | 52g (without Battery) / 61g(including Battery) | |
| Insulin reservoir | 300 unit, plastic impact resistant, insulin compatible | |
| Bolus setting | 0 to 80 units. Bolus programs include normal, default, preset for meal appropriate, step programming | |
| Bolus increments | 0.05U / 0.1U / 0.5U / 1.0U | |
| Basal profile | Unit/Hr, Unit/Day | |
| Basal increments | 0 to 16 units/hour | |
| Temporary basal rate | 0% ~ 200% (Increment or reduce in 10%) | |
| Basal delivery | Every 4 min basis (varies, 0.5 u/hr = every 12 min) | |
| Powersupply | Uses only one 3.6 V DC Lithium Battery | |
| Energy saver | Screen sleep mode | |
| Suspension mode | Manual and program suspend options | |
| Safety checks | Dual microprocessors for continuous cross checking | |
| Water resistant | IP28 rate(pump), 1P20 rate(Remote) | |
| Insulin concentration | U-100 (default) | |
| Time format | 12 Hr (AM/PM) with optional military time | |
| Alarm | Audible tone (beep), Vibration mode, Beep & Vibration mode | |
| Safety settings | Maximum bolus / Maximum basal / Maximum daily total /Low reservoir Line occlusion / Low battery / Pump malfunction |
|
| Display | Liquid Crystal Display (LCD) with backlight. Largest display screen of any pump available, simple icon driven menu, auto-display of remaining insulin and battery life. | |
| Warrantly | 4 years | |
| Extras | 1 leather cases and one impact resistant hard case included with each pump. Additional user accessories of belt holder, bathing bag and bra pouch included in convenient travel kit. Extra battery keys and linking screws available at no cost if misplaced by user. | |
| Memory | Bolus history | Last 300 boluses with time and date stamp |
| Daily Total History | Last 60 daily insulin totals with time and date stamp | |
| Prime History | Last 60 primes with time and date stamp | |
| Alarm History | Last 50 alarms with time and date stamp | |
| Guided Management Features | 16 programmable modes including options for: | |
| Audible reminders for bolus insulin / CHO check 30 minutes post meal | ||
| Bolus frequency restrictions Presetting meal appropriate boluses |
||
| Presetting of default bolus PIN programming for healthcare professionals / caregivers to access guided management features |
||

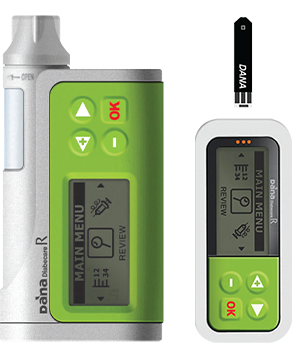

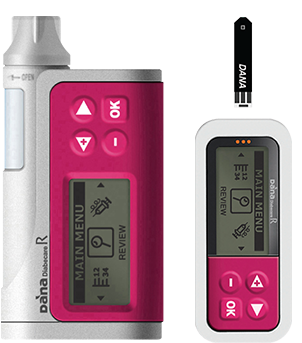

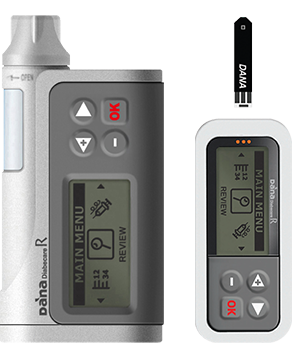

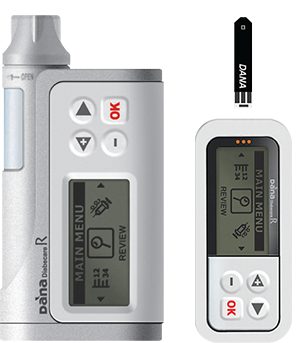

| Colors | Available in 5 colors | |
Safety Information
Intended use
The DANA Diabecare R Insulin Pump is intended for the subcutaneous delivery of insulin for the treatment of diabetes mellitus. The device is not intended for use with blood or blood products.
Contraindication
Insulin Pump therapy is not recommended for people whose vision or hearing does not allow recognition of pump signals and alarms.
Warning
The DANA Diabecare R system is only to be used by patients who have received training from a certified diabetes educator and/or insulin pump trainer and by advice from a physician. For safety and optimum benefits read the entire user manual before using the system.
General Precautions
- 1. Pump users need more than 4 blood glucose measurements per day, and vision and hearing to get the pump alarm.
- 2. Confirm regularly that the screen display turns on, you can hear audible beeps, and feel the vibrate. If these features are not working, discontinue use of the pump and contact a healthcare professional or technical support from the local Insulin Pump distributor.
- 3. Patients must not open the Pump housing or handle any internal components.
- 4. The DANA Diabecare R Insulin Pump is intended for use with a proprietary Infusion Set, reservoir and other accessories specified in this booklet. DO NOT use the Pump with any other infusion system or accessories.
- 5. Press buttons with the pad of the finger. DO NOT use fingernails or any sharp objects.
- 6. The Insulin Pump comes with factory default settings and alarms, maximum daily totals, basal and bolus doses. These settings can be adjusted by a healthcare professional.
- 7. The reservoir and Infusion Set are supplied with sterile and intended for single use only. DO NOT reuse.
- 8. Change the reservoir and the Infusion Set regularly, as recommended by your healthcare professional. DO NOT use for longer than 72 hours.
- 9. Check the expiration dates and dispose of any expired accessories.
- 10. Avoid impact damage such as dropping. If there is any known damage of pump and accessory, contact your healthcare professional or technical support from the local Insulin Pump distributor.
- 11. For any trouble with any of the system components, turn off the Insulin Pump by removing the battery and contact your healthcare professional or your Insulin Pump trainer.
- 12. Remove the battery for long-term storage.
- 13. If you forgot pump password, contact technical support from the local Insulin Pump distributor.
- 14. Check your infusion site daily for proper placement and leaks. If you notice leaks around the site replace infusion set.
