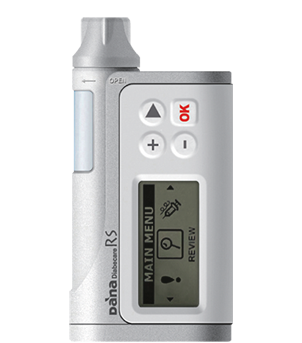

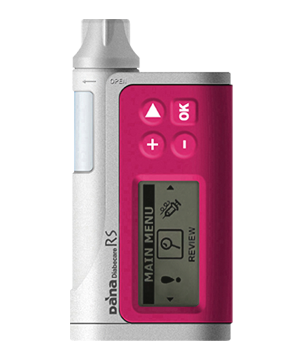

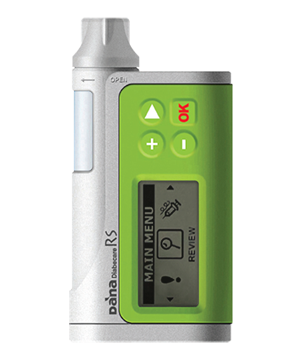

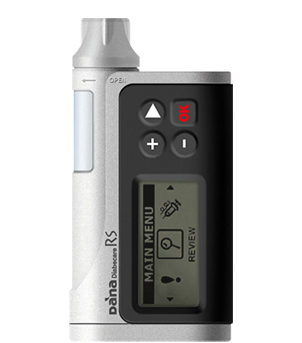

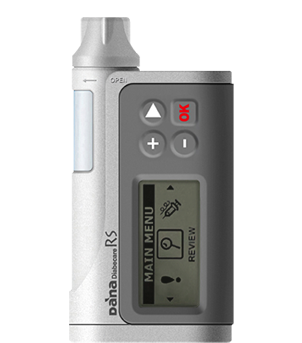

Dana Diabecare RS

Dana Diabecare RS Remote System is a smart insulin pump with discrete remote control.

Dana Diabecare RS Remote System Enables you to...

  • Control with your Smartphone

    Full discrete remote control from smartphone application.

  • One of the smallest and lightest insulin pump in the world

    It's very a handy little insulin pump. It only weighs 62 grams[2.18 oz) including battery.

  • Both Android or iOS applications

    Now you can use DANA Diabecare RS with either Android or iPhone.

  • DANA RS features

    • Safe and secure BLE communication.

Technical Specifications

  • • Bolus Increments in 0.05, 0.1, 0.5, 1.0 units
  • • Alternative Bolus Duration: 12, 30, 60 sec for 1 unit
  • • Extended Bolus (30 minutes - 8 hours)
  • • Dual Pattern Bolus
  • • Minimal Delivery Rate: 0.04 unit/hr
  • • Basal Increments: 0.1 unit/hr or 0.01 unit/hr
  • • Number of Rates Per Profile: 24/day, hourly
  • • Temporary Basal: 1hr - 24 hrs, 0% - 200%
  • • Number of Profiles: 4
  • • Insulin Capacity of 300 units (3.0 cc)
  • • Memory Recall: Bolus(300), Daily totals(60), Prime(60), Refill(60), BGM(420), Carbohydrate(300), Basal(1440 Hours), Alarm(50), Suspend(50), Temporary Basal(100), Error(100)
  • • Average Battery Life of 3-4 Weeks (Depends upon insulin dosage)
  • • IP28 rate (Pump)
  • • Button-Lock mode to prevent unintended operation
  • • Alarm (Low Battery, Low reservoir, Occlusion, Missed bolus,Shutdown)
  • • Fail-safe Function
  • • Bolus Frequency Restriction
  • • Active Insulin Monitoring
  • • Carbo/Bolus Calculation Program
  • • Button Scroll
  • • Vibrator
  • • 21 Languages Supported
    (Arabic, Chinese, Czech, Dutch, English, French, German, Greek, Hebrew, Hindi, Iranian, Italian, Korean, Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish)
  • • Weight: 62grams[2.18oz] including battery.
  • • Audible reminders of Bolus insulin
  • • Presetting of default boluses
  • • PIN programming for healthcare professional / caregivers to access guided management features
Required Specification of Android Smartphone for AnyDANA-A
  • • OS : Android 4.3(Jelly bean) or Later
  • • Resolution : xhdip, xxhdip, xxxhdip or Higher
Required Specification of iPhone for AnyDANA-i
  • • OS : iOS 9.0 or Later
  • • Model : iPhone 5 or Later

Safety Information

Intended use

The DANA Diabecare RS Insulin Pump is intended for the subcutaneous delivery of insulin for the treatment of diabetes mellitus. The device is not intended for use with blood or blood products.


Insulin Pump therapy is not recommended for people whose vision or hearing does not allow recognition of pump signals and alarms.


The DANA Diabecare RS system is only to be used by patients who have received training from a certified diabetes educator and/or insulin pump trainer and by advice from a physician. For safety and optimum benefits read the entire user manual before using the system.

General Precautions
  • 1. Pump users need more than 4 blood glucose measurements per day, and vision and hearing to receive any pump alarm.
  • 2. Confirm regularly that the screen display turns on, you can hear audible beeps, and feel the vibrate. If these features are not working, discontinue use of the pump and contact a healthcare professional or technical support from the local Insulin Pump distributor.
  • 3. Patients must not open the Pump housing or handle any internal components.
  • 4. The DANA Diabecare RS Insulin Pump is intended for use with a proprietary Infusion Set, reservoir and other accessories specified in this booklet. DO NOT use the Pump with any other infusion system or accessories.
  • 5. Press buttons with the pad of the finger. DO NOT use fingernails or any sharp objects.
  • 6. The Insulin Pump comes with factory default settings and alarms, maximum daily totals, basal and bolus doses. These settings can be adjusted by a healthcare professional.
  • Glucose Check Alarm
    Maximum Daily Total
    Maximum Bolus
    Maximum Basal
  • 7. The reservoir and Infusion Set are supplied with sterile and intended for single use only. DO NOT reuse.
  • 8. Change the reservoir and the Infusion Set regularly, as recommended by your healthcare professional. DO NOT use for longer than 72 hours.
  • 9. Check the expiration dates and dispose of any expired accessories.
  • 10. Avoid impact damage such as dropping. If there is any known damage of pump and accessory, contact your healthcare professional or technical support from the local Insulin Pump distributor.
  • 11. For any trouble with any of the system components, turn off the Insulin Pump by removing the battery and contact your healthcare professional or your Insulin Pump trainer.
  • 12. Remove the battery for long-term storage.
  • 13. If remote control is not intended to be used, it is suggested to turn the BLE off by activating ‘Airplane Mode’ to prevent unintentional delivery.
  • 14. If you forgot pump password, contact technical support from the local Insulin Pump distributor.
  • 15. Check your infusion site daily for proper placement and leaks. If you notice leaks around the site replace infusion set.
  • updated on 2021-10-19
